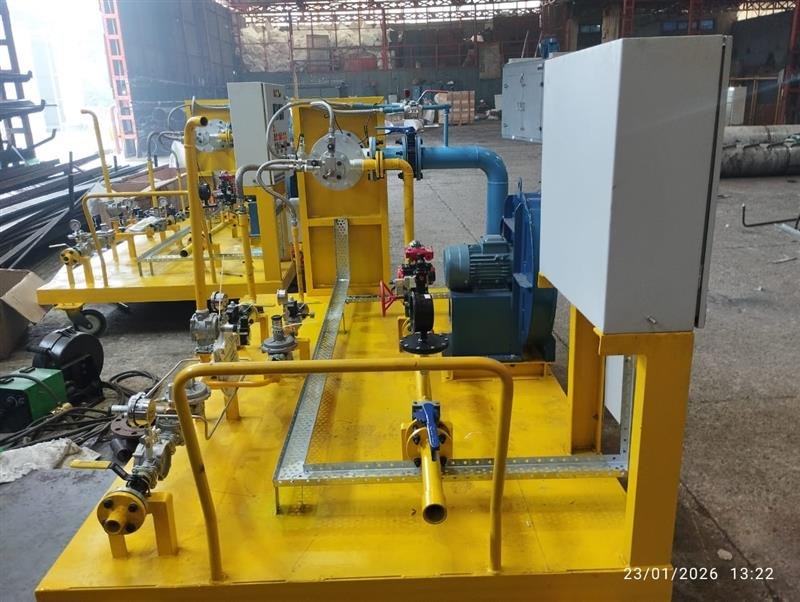

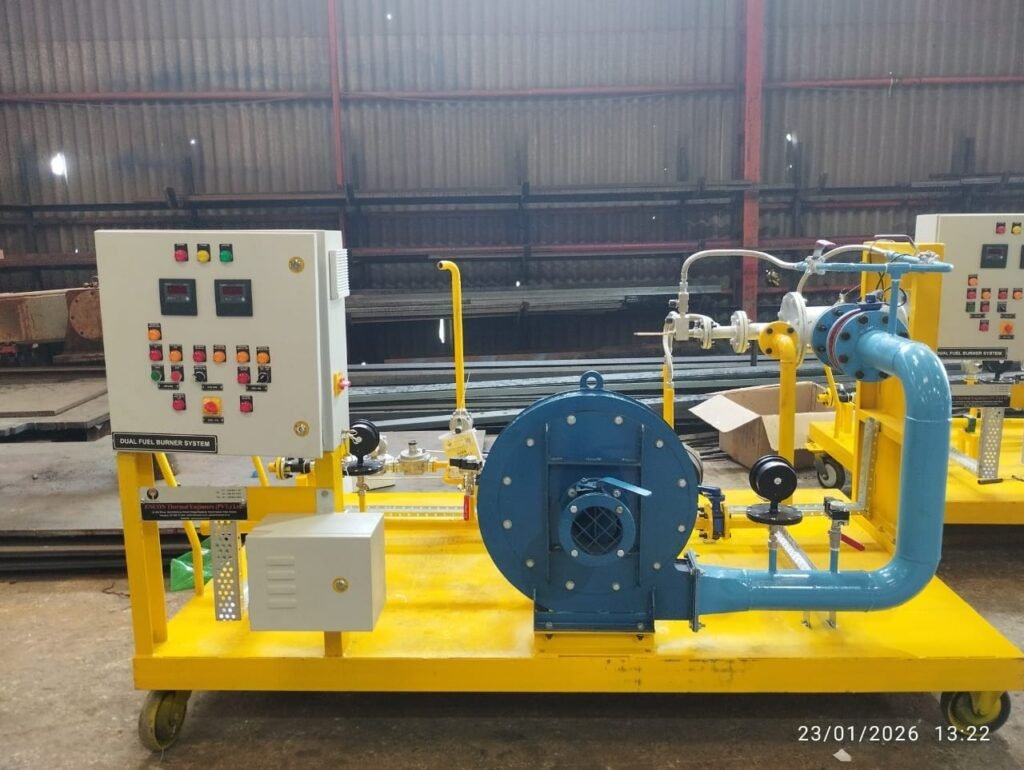

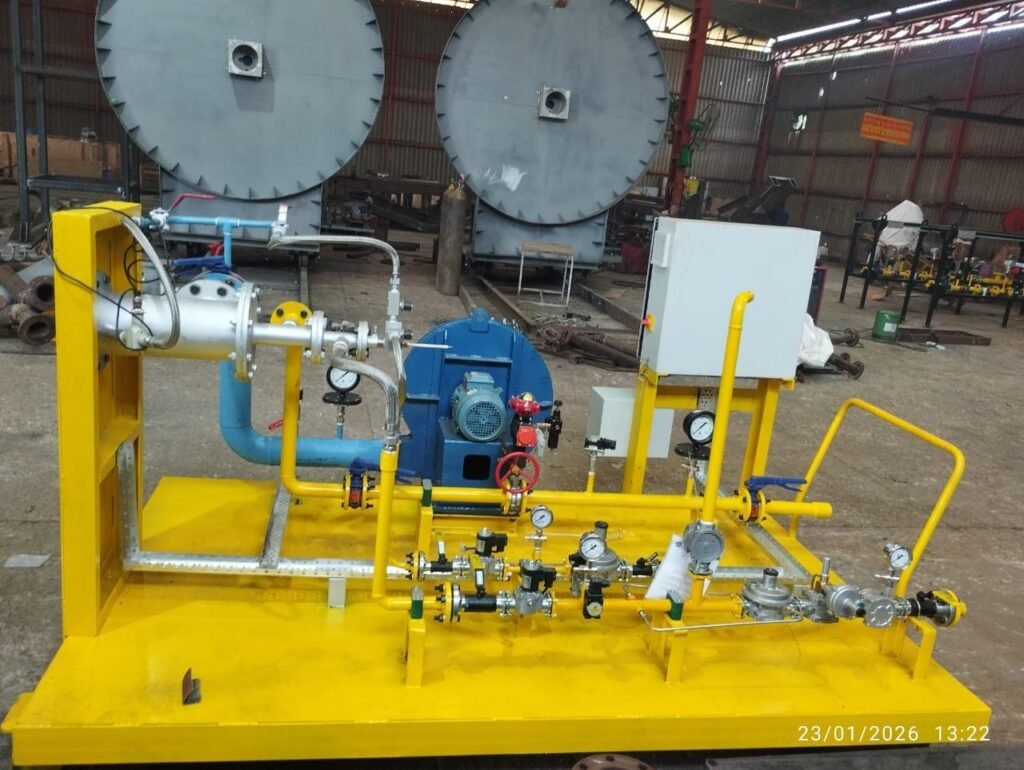

Refractory Dry-Out Burner System
Refractory Dry-Out Burner System
Precision-Controlled Heating for Safe & Reliable Commissioning
At ENCON Thermal Engineers Pvt. Ltd., we design and manufacture advanced Refractory Dry-Out Burner Systems engineered for precise temperature ramp control, uniform heat distribution, and safe moisture removal across industrial applications.
Our systems are fully customizable based on client and site requirements and can operate on multiple gaseous and liquid fuels. They are available in manual, semi-automatic, or 100% automatic configurations, ensuring flexibility across shutdown projects, greenfield installations, and plant retrofits.
Why Controlled Refractory Dry-Out Is Critical
Fresh (green) refractory contains:
- Free moisture
- Chemically bound water
If heated too rapidly:
- Micro-cracks form
- Surface spalling occurs
- Internal steam pressure
- damages structure
- Structural integrity weakens
- Lining life reduces dramatically
A poorly executed dry-out can reduce refractory life by 30–50% before production even begins.
This is not a materials failure. It is a process failure.
With ENCON’s engineered dry-out system, these risks are controlled and minimized through precise thermal management.
ENCON Refractory Dry-Out Systems are:
- Modular in construction
- Skid-mounted and highly mobile
- Designed for harsh industrial environments
- Engineered for repeatable and documented performance
Unlike generic site burners, ENCON systems are engineered with:
- High turndown ratio for precise low-temperature control
- Precision combustion tuning to avoid thermal shock
- Reduced hot spots in single-burner configurations
- Integration with plant PLC / SCADA systems
- On-site technical supervision and commissioning support
Key Features
Programmable Temperature Ramp Profiles
Multi-stage drying curves from ambient to 1200°C+
Stable low-fire operation for extended soak periods
Profile compliance as per refractory manufacturer specifications
Data logging for validation and documentation
Uniform Heat Distribution
- Optimized flame geometry
- Adjustable flame momentum control
- Reduced flame impingement
- Even temperature gradients across lining surfaces
Skid-Mounted, Plug-and-Play Design
- Compact and transportable
- Ideal for shutdown and commissioning projects
- Suitable for permanent installation or rental use
- Rapid site deployment
Multi-Fuel Compatibility
- Natural Gas
- LPG / Propane
- Light Oil (optional)
- Oxygen-Enriched Combustion
- Optional Oxy-Fuel Integration
Advanced Safety & Automation
- UV / IR flame detection
- Automatic ignition and purge sequencing
- Gas pressure and flow interlocks
- PLC-based control with HMI interface
- SCADA integration capability
Applications Across Industries
Steel Industry
- Ladle dry-out systems
- Tundish curing
- Reheating furnace castables
Soaking pits - EAF & BOF refractory zones
Cement & Process Industry
- Kiln refractory drying
- Cyclone preheater sections
- Burner pipe curing
Power & Petrochemical
- Boiler refractory sections
- Process heaters
- Incinerators
Benefits You Can Measure
✔ Extended refractory life
✔ Reduced spalling and cracking
✔ Faster, controlled commissioning
✔ Improved operational safety
✔ Lower risk of premature shutdown
✔ Fully documented and repeatable dry-out cycles
