Iron & Steel Making

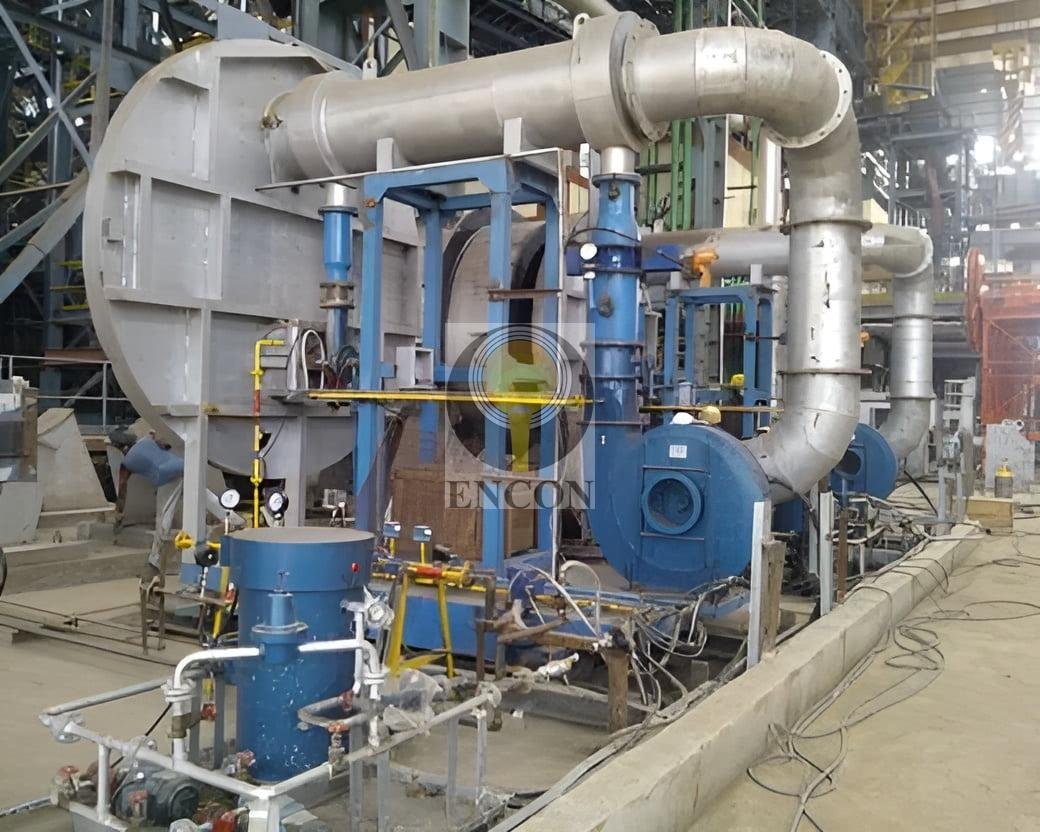

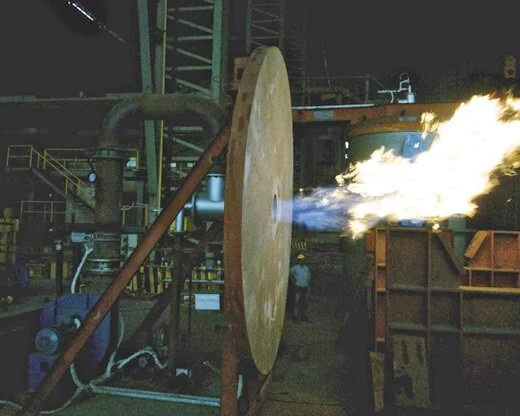

Horizontal Ladle Preheaters
Horizontal Ladle Preheaters are essential for raising or maintaining the temperature of various ladles. Each preheater is uniquely customized to meet client-specific needs, ensuring optimal performance and efficiency. These systems handle a wide range of ladle sizes and configurations, making them versatile for various industrial applications. By maintaining consistent ladle temperatures, our preheaters enhance the quality and consistency of molten metal handling, improving operational efficiency and extending ladle life by reducing thermal shock and wear. Built with advanced technology, our preheaters ensure reliability, durability, and energy efficiency, providing a robust solution for demanding industrial environments.
With our expertise in designing and manufacturing custom preheating solutions, we guarantee systems that perfectly integrate with your existing processes. Contact us to learn more about our customizable options and how we can help improve your heating processes.
Key Enhancements
Recuperative Type Preheaters
- Utilizes high-temperature flue gases (above 1000°C) to preheat the air.
- Incorporates a custom-designed heat exchanger tailored for ladle applications.
- Achieves up to 25% savings in running costs by reclaiming heat from exhaust gases.
Oxy Enrichment
- Enables higher heating temperatures exceeding 1200°C.
- Reduces fuel consumption and cycle time.
- Offers energy savings ranging from 10% to 25%, depending on the level of enrichment.
Multi-Fuel Fired Burners
- Custom-designed burners cater to specific requirements.
- Capable of using multiple types of fuel (liquid/gaseous) and also it is hydrogen ready without needing burner modifications.
- Supplies burners that can fire multiple gaseous fuels.
These systems can be powered by almost any liquid or gaseous fuel. We supply systems that utilize blast furnace gas (800 Kcal/Nm³).
Customization Options
- Hood Movement Systems: Various types of hood movements available, including hydraulic, pneumatic, or geared motors.
We offer highly customized solutions to meet your specific requirements.
Benefits of Our Horizontal Ladle Preheaters
Energy Efficiency
Our Horizontal Ladle Preheaters are designed to maximize energy efficiency. With recuperative preheaters, you can save up to 25% on running costs by reclaiming heat from flue gases. Additionally, our oxy enrichment technology offers energy savings ranging from 10% to 25%, depending on the level of enrichment. These features not only reduce operational costs but also contribute to a more sustainable and environmentally friendly process.
Custom Solutions
We understand that each operation has unique requirements, which is why we offer highly customized solutions for our Horizontal Ladle Preheaters. From various hood movement systems, including hydraulic, pneumatic, or geared motors, to specific burner configurations, we tailor our products to meet your exact needs. This customization ensures that you receive a solution that seamlessly integrates into your existing setup and maximizes efficiency.
Fuel Versatility
One of the standout features of our Horizontal Ladle Preheaters is their ability to use multiple types of fuel in the same burner without modifications. Whether you need to switch between liquid and gaseous fuels, our custom-designed burners can handle it all. This versatility ensures that you have the flexibility to use the most cost-effective and readily available fuels, further optimizing your operational efficiency.
Enhanced Performance
Our Horizontal Ladle Preheaters are engineered to deliver superior performance. With the ability to achieve higher heating temperatures exceeding 1200°C through oxy enrichment, you can significantly reduce cycle times. This leads to faster turnaround and increased productivity. Additionally, the precise control over heating temperatures ensures consistent and high-quality results for your processes.
*Fill Out The Questionnaire*
Submit Your Requirements & Our Team Will Get Back To You Shortly!
Frequently Asked Questions
A horizontal ladle preheater is a device used in foundries and steel mills to preheat ladles before they are filled with molten metal. The preheating process is essential to ensure that the ladle is at an appropriate temperature to minimize thermal shock and improve the efficiency of the metal pouring process.
- Reduced Thermal Shock: Preheating the ladle reduces the risk of thermal shock, which can cause cracking or damage to the ladle.
- Improved Metal Quality: Maintaining a consistent temperature in the ladle helps in achieving better metal quality by preventing temperature drops during pouring.
- Energy Efficiency: Preheating helps to retain the heat in the ladle, reducing the amount of energy required to maintain the molten metal temperature.
- Extended Ladle Life: Reducing thermal stress extends the lifespan of the ladle.
- Enhanced Process Control: Consistent preheating ensures more predictable and controlled metal pouring processes.
Horizontal ladle preheaters are commonly used in:
- Steel Mills: For preheating ladles used to transport molten steel.
- Foundries: For preheating ladles used in casting processes.
The time required to preheat/drye a ladle using a horizontal ladle preheater can vary based on the size of the ladle and the desired temperature. Generally, it can take anywhere from 30 minutes to several hours.
- Regular Inspections: Routine checks for wear and tear, especially in the refractory lining and burner system.
- Cleaning: Removing any build-up of slag or other materials.
- Component Replacement: Timely replacement of worn-out parts like burners, seals, and insulation.
- Calibration: Ensuring proper calibration of temperature controls and sensors.
The typical lifespan of a horizontal ladle preheater can range from 5 to 15 years, depending on usage, maintenance, and operating conditions.
Horizontal ladle preheaters improve process efficiency by:
- Reducing Heat Loss: Maintaining the temperature of the ladle reduces the heat loss from the molten metal.
- Minimizing Downtime: Faster preheating reduces the waiting time between batches.
- Consistent Temperature: Ensures the molten metal remains at an optimal temperature for pouring.
- Heat Management: Proper insulation and heat management to prevent burns and other heat-related injuries.
- Gas Handling: Safe handling and storage of fuels to prevent leaks and explosions.
- Ventilation: Adequate ventilation to remove combustion gases and prevent hazardous conditions.
- Training: Ensuring that operators are properly trained in the use and maintenance of the preheater.
- Reduced Emissions: Efficient combustion systems reduce the emission of pollutants.
- Energy Savings: Improved thermal efficiency leads to lower energy consumption.
- Less Waste: Extended ladle life and better process control reduce waste and the need for frequent replacements.
Preheating a ladle ensures that the molten metal maintains a consistent temperature, which:
- Prevents Contamination: Reduces the risk of metal contamination from the ladle.
- Improves Metallurgical Properties: Maintains the desired metallurgical properties of the molten metal.
Horizontal ladle preheaters can use various types of fuel, including:
- Natural Gas
- Blast Furnace GAs
- Mixed GAs
- Coke oven GAs
- Syn GAs
- PRoducer GAs
- Propane
- Oil
- Hydrogen
- Electricity (in electric preheaters)
Using a Regenerative burner and Oxy fuel or Oxygen Enriched combustion will increase the efficiency of the preheaters/dryers.
