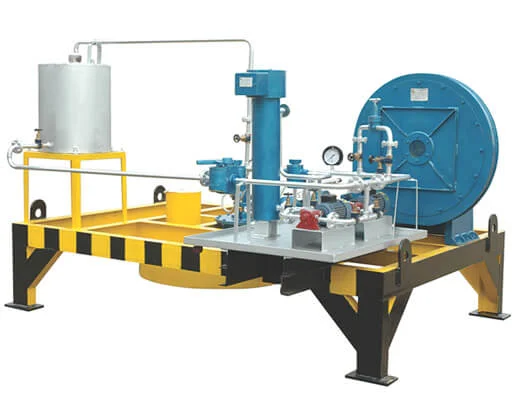

Raycon Systems – PATCH UP LINING HEATER (SINTERING)

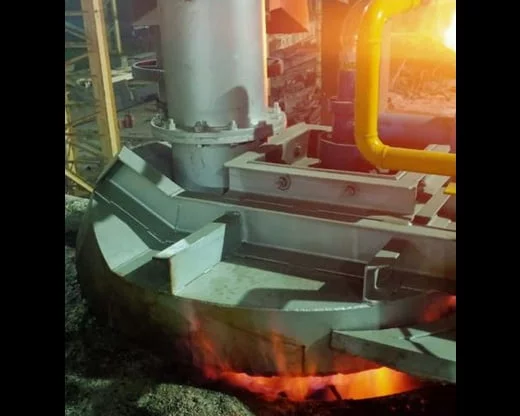

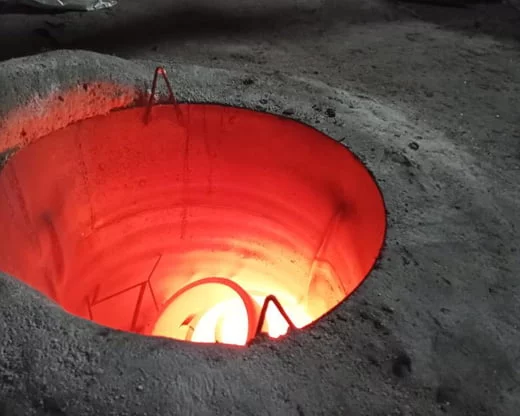

This system is used to heat fresh patch-up lining in Induction Furnace with the help of High Velocity Burners.
This system has cut the “down time” of the furnace by 30 minutes and retrofitted 650 units of heating loadto a cheaper source of energy for a 7 ton Induction Furnace
Payback period for these systems are less than One Year
We are offering the following additional enhancement:-
- 1. Oxy Enrichment: Oxy enrichment is used either to achieve higher heating temperature more than 1200 C or to reduce the fuel consumption or reduce the cycle time. The energy saving can vary from 10 to 25% depending upon the level of enrichment.
- 2. Multi Fuel Fired: All the burners are custom designed and are for specific requirement and as such we can use multiple type of fuel in the same burner (liquid/Gaseous) without changing the burner, we also supply burners which can fire multiple gaseous.
We can offer various type of hood movement for the systems:-
- 1. Up & down movement using hydraulic or electrical actuator
- 2. Swivel movement, manually or using an electrical motor.
We offer various working options for the systems
- 1. Auto Ignition
- 2. Auto Temperature control
- 3. PID, PPID Or PLC Based controllers.
We offer your highly customised solutions according to your needs.
